Sonel MMR-630

Description

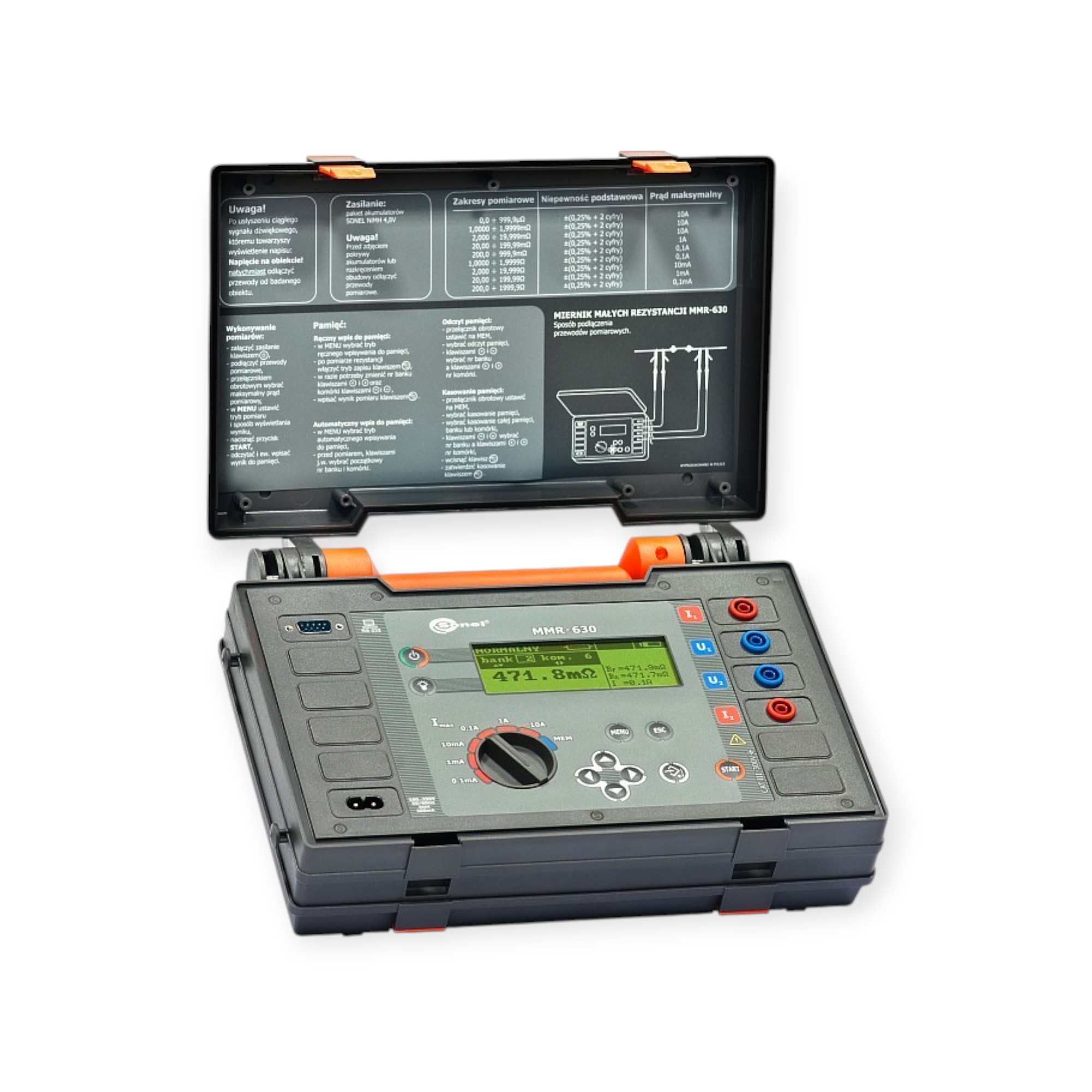

The MMR-630 Series meters are professional portable instruments for measuring very low resistances. Due to their special measurement algorithm they can be used for both resistive and inductive type of a specimen that makes

MMR-630 series perfect instruments for electricians testing electrical junctions, motors and power transformers windings. The results can be stored in the internal memory and send to a computer via serial interface. A quick PASS/FAIL test function with results displayed and acoustically indicated simplifies measurements considerably.
  • Measurement of resistive object type:
    – welded and soldered connections, equipotential bonding, earth wire,
    – terminals and connectors, rail welded joints, cables and wires,
    – measurement 4-pole method.
  • Measurement of inductive object type:
    – coils (motors and transformers), low resistance coils.
  • Range selection autoranging or manual (measurement of inductive object type).
  • Selectable measurement mode adjusted to object type:
    – for resistive objects – fast mode (3 seconds),
    – for inductive objects – long mode with automatic discharge after measurements (or with lower accuracy – shorter mode).
  • Selectable measurement mode adjusted to application:
    – normal mode – after pushing „START” button,
    – automatic mode – since test leads are connected to the object meters automatically starts measurement with dual direction current flow and gives average result – what eliminates eventual DC voltage on tested object,
    – continuous mode – every 3 seconds for resistive objects or continuous measurement for inductive objects.
  • Window mode:
    – this option enables setting an upper and a lower limit between which the average measurement result is bound to appear. The results outside of this range will be indicated by two long audible signals and the symbols.
  • MMR-630 is designated not to be effected by interference up to 20 mV and to show noises from 20 to 100 mV (so in edge conditions even 5 times higher than measured drop of potential).
  • Memory store for up to 990 results and a communications facility for transferring data from the device to a PC.

Electric security:
– type of insulation: double, according to EN 61010 – 1 and IEC 61557
– measurement category: CAT III 300 V acc. to EN 61010 – 1
– protection class acc. to EN 60529: IP54

Other technical data:
– meter’s power supply: battery package SONEL/Ni-MH 4,8 V
– battery charging time: approx. 2,5 hours
– number of measurements with the current of 10 A: 300
– auto-off time: 120 seconds
– immunity to interference: additional error ≤1% for voltage 50 Hz ≤100 mV RMS
– maximum leads resistance for the 10 A current: 0,1 Ω
– maximum inductance of the tested object: 40H
– accuracy of the test current: ±10%
– resistance measurement time:
– with the selected resistive object type with the bidirectional current: 3 seconds
– with the selected inductive object type, dependant on the resistance
and inductance of the object: a few minutes (max. 10)
– dimensions: 295 x 222 x 95 mm
– weight: approx. 1,7 kg

Rated operational conditions:
– operation temperature: 0…+40°C
– storage temperature: -20…+60°C

MMR-620 microohmmeter conforms the following directives
or standards according to CE requirements.

Directive:
Low Voltage Directive (LVD) 73/23/EEC, 93/68/EEC.

Standards:
EN 61010 – 1:2001 Safety requirements for electrical equipment for measurement, control and laboratory use. General requirements .
EN 61010 – 031:2002: Safety requirements for electrical equipment for measurement, control and laboratory use. Safety requirements for hand-held probe assemblies for electrical measurement and test.

Directive:
Electromagnetic compatibility (EMC) 89/336/EEC, 92/31/EEC, 93/68/EEC.

Standards:
EN 61326:1997+A1:1998+A2:2001 Electrical equipment for measurement, control and laboratory use – EMC requirements.

Resistance measurement

MMR-630CurrentAccuracy
RangeResolution
0…999,9μΩ0,1μΩ10 A±(0,25% m.v. + 2 digits)
1,0000…1,9999 mΩ0,0001 mΩ
2,000…19,999 mΩ0,001 mΩ
20,00…199,99 mΩ0,01 mΩ1 A
200,0…999,9 mΩ0,1 mΩ0,1 A
1,0000…1,9999 Ω0,0001 Ω
2,000…19,999 Ω0,001 Ω10 mA
20,00…199,99 Ω0,01 Ω0,1 mA
200,0…1999,9 Ω0,1 Ω0,1 mA

– input impedance of the voltmeter: ≥200 kΩ

„m.v.” – measured value.
