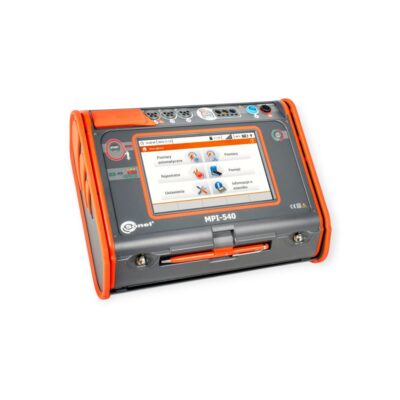

MPI-540 Multifunction electrical installations meter WMGBMPI540

Description

The MPI-540 meter is designed for checking home and industrial electrical installations. The measurements that can be made, by using the device, provides the results which determine the safety of the installation. In addition, the user has the possibility to register the parameters of electrical networks located at these facilities.

This allows verification of the quality of electricity, and measurement of the parameters of protection against electric shock using a single universal device. Significant automation of measurements of the meter makes possible to test functioning of residual current circuit breakers in the Auto mode, as well as in pre-programmed measuring sequences (so-called auto-tests), which can also be extended with own sequences. Automatic measurement of insulation resistance of 3-, 4- and 5-wire conductors is possible by using additional the AUTO ISO-1000C adapter.

Technical Specifications

Measurement of short circuit loop impedance ZL-PE, ZL-N, ZL-L
Test current: 23/40 A; measuring range acc. to IEC 61557: 0,13…1999,9 Ω (for 1.2 m test lead):
Display range Resolution Accuracy
0,000…19,999 Ω 0,001 Ω ±(5% m.v. + 30 digits)
20,00…199,99 Ω 0,01 Ω ±(5% m.v. + 30 digits)
200,0…1999,9 Ω 0,1 Ω ±(5% m.v. + 30 digits)
  • rated voltage: 95…270 V (for ZL-PE and ZL-N) and 95…440 V (for ZL-L)
  • frequency: 45…65 Hz



Measurement of short circuit loop impedance ZL-PE in RCD mode
Test current: 15 mA, measuring range acc. to IEC 61557: 0,50…1999 Ω
Display range Resolution Accuracy
0,00…19,99 Ω 0,01 Ω ±(6% m.v. + 10 digits)
20,0…199,9 Ω 0,1 Ω ±(6% m.v. + 5 digits)
200…1999 Ω 1 Ω ±(6% m.v. + 5 digits)
  • rated voltage: 95…270 V
  • frequency: 45…65 Hz



Measurement of earth resistance RE with the 3p and 4p method
Measuring range acc. to IEC 61557-5: 0,50 Ω…1,99 k Ω for test voltage 50 V 0,56 Ω …1,99 k Ω for test voltage 25 V
Display range Resolution Accuracy
0,00…9,99 Ω 0,01 Ω ±(2% m.v. + 4 digits)
10,0…99,9 Ω 0,1 Ω ±(2% m.v. + 3 digits)
100…999 Ω 1 Ω ±(2% m.v. + 3 digits)
1,00…1,99 kΩ 0,01 kΩ ±(2% m.v. + 3 digits)
  • test voltage: 25 V or 50 V rms
  • test current: 20 mA, sinusoidal rms 125 Hz (for fn = 50 Hz) and 150 Hz (for fn = 60 Hz)
  • measurement blocked at interference voltage UN > 24 V
  • maximum measured interference voltage Unmax = 100 V
  • maximum resistance of auxiliary earth electrodes 50 kΩ



Selective earth resistance measurement with clamp (3p + clamp)
Measuring range acc. to IEC 61557-5: 1 Ω…1,99 kΩ
Display range Resolution Accuracy
0,00…9,99 Ω 0,01 Ω ±(2% m.v. + 4 digits)
10,0…99,9 Ω 0,1 Ω ±(2% m.v. + 4 digits)
100…999 Ω 1 Ω ±(2% m.v. + 4 digits)
1,00…1,99 kΩ 0,01 kΩ ±(2% m.v. + 4 digits)
  • measurement with additional current clamp
  • interference current measuring range: up to 9,99 A



Selective earth measurement with two clamps
Display range Resolution Accuracy
0,00…9,99 Ω 0,01 Ω ±(10% m.v. + 4 digits)
10,0…19,9 Ω 0,1 Ω ±(10% m.v. + 4 digits)
20,0…99,9 Ω 0,1 Ω ±(20% m.v. + 4 digits)
  • measurement with transmitting and receiving clamps
  • interference current measuring range: up to 9,99 A



Soil resistivity mesurement (ρ)
Display range Resolution Accuracy
0,00…9,99 Ω 0,01 Ω ±(2% m.v. + 4 digits)
10,0…99,9 Ω 0,1 Ω ±(2% m.v. + 4 digits)
100…999 Ω 1 Ω ±(2% m.v. + 4 digits)
1,00…1,99 kΩ 0,01 kΩ ±(2% m.v. + 4 digits)
  • measurement with Wenner’s method
  • distance settable in metres or feet
  • distance range: 1…30 m (1…90 feet)



Phase sequence indication



  • phase sequence indication: conforming, non-conforming
  • mains voltage range U : 100…440 V (45…65 Hz) L-L
  • display of phase-to-phase voltage values



Measurements of RCD parameters (voltage range 95…270 V):
RCD tripping test and measurement of tripping time tA (for tA measurement function)
RCD type Current Range Resolution Accuracy
General and short-time delay 0,5*IΔn 0…300 ms 1 ms ±(2% m.v. + 2 digits)

(for RCD with IΔn = 10 mA and 0,5xIΔn uncertainty: ±(2% m.v. +3 digits)

General and short-time delay 1*IΔn 0…300 ms 1 ms ±(2% m.v. + 2 digits)

(for RCD with IΔn = 10 mA and 0,5xIΔn uncertainty: ±(2% m.v. +3 digits)

General and short-time delay 2*IΔn 0…150 ms 1 ms ±(2% m.v. + 2 digits)

(for RCD with IΔn = 10 mA and 0,5xIΔn uncertainty: ±(2% m.v. +3 digits)

General and short-time delay 5*IΔn 0…40 ms 1 ms ±(2% m.v. + 2 digits)

(for RCD with IΔn = 10 mA and 0,5xIΔn uncertainty: ±(2% m.v. +3 digits)

Selective 0,5*IΔn 0…500 ms 1 ms ±(2% m.v. + 2 digits)

(for RCD with IΔn = 10 mA and 0,5xIΔn uncertainty: ±(2% m.v. +3 digits)

Selective 1*IΔn 0…200 ms 1 ms ±(2% m.v. + 2 digits)

(for RCD with IΔn = 10 mA and 0,5xIΔn uncertainty: ±(2% m.v. +3 digits)

Selective 2*IΔn 0…200 ms 1 ms ±(2% m.v. + 2 digits)

(for RCD with IΔn = 10 mA and 0,5xIΔn uncertainty: ±(2% m.v. +3 digits)

Selective 5*IΔn 0…150 ms 1 ms ±(2% m.v. + 2 digits)

(for RCD with IΔn = 10 mA and 0,5xIΔn uncertainty: ±(2% m.v. +3 digits)

  • accuracy of residual current application: for 0,5*IΔn:-8…0% for 1*IΔn, 2*IΔn, 5*IΔn: 0…8%
  • measurement of RCD tripping current IΔn for sinusoidal residual current (AC type)



Rated current Meas. range Resolution Test current Accuracy
10 mA 3,3…10,0 mA 0,1 mA 0,3 x IΔn…1,0 x IΔn ± 5% IΔn
30 mA 9,0…30,0 mA 0,1 mA 0,3 x IΔn…1,0 x IΔn ± 5% IΔn
100 mA 33…100 mA 1 mA 0,3 x IΔn…1,0 x IΔn ± 5% IΔn
300 mA 90…300 mA 1 mA 0,3 x IΔn…1,0 x IΔn ± 5% IΔn
500 mA 150…500 mA 1 mA 0,3 x IΔn…1,0 x IΔn ± 5% IΔn
1000 mA 330…1000 mA 1 mA 0,3 x IΔn…1,0 x IΔn ± 5% IΔn
  • the measurement can be started from positive or negative half-period of forced leakage current (AC)



Measurement of RCD tripping current IA for unidirectional residual current and unidirectional with the 6 mA DC bias (type A)
Rated current Meas. range Resolution Test current Accuracy
10 mA 3,5…20,0 mA 0,1 mA 0,35 x IΔn…2,0 x IΔn ± 10% IΔn
30 mA 10,5…42,0 mA 0,1 mA 0,35 x IΔn…1,4 x IΔn ± 10% IΔn
100 mA 35…140 mA 1 mA 0,35 x IΔn…1,4 x IΔn ± 10% IΔn
300 mA 105…420 mA 1 mA 0,35 x IΔn…1,4 x IΔn ± 10% IΔn
500 mA 175…700 mA 1 mA 0,35 x IΔn…1,4 x IΔn ± 10% IΔn
  • measurement for positive or negative half-periods of forced leakage current



Measurement of RCD tripping current I for direct residual current (type B)
Rated current Meas. range Resolution Test current Accuracy
10 mA 2,0…20,0 mA 0,1 mA 0,2 x IΔn…2,0 x IΔn ± 10% IΔn
30 mA 6…60 mA 1 mA 0,2 x IΔn…2,0 x IΔn ± 10% IΔn
100 mA 20…200 mA 1 mA 0,2 x IΔn…2,0 x IΔn ± 10% IΔn
300 mA 60…600 mA 1 mA 0,2 x IΔn…2,0 x IΔn ± 10% IΔn
500 mA 100…1000 mA 1 mA 0,2 x IΔn…2,0 x IΔn ± 10% IΔn
  • measurement for positive or negative half-periods of forced leakage current
  • IΔn – rated residual current



Insulation resistance measurements

Measuring range acc. to IEC 61557-2:

  • for Un = 50 V: 50 kΩ…250 MΩ
  • for Un = 100 V: 100 kΩ…500 MΩ
  • for Un = 250 V: 250 kΩ…999 MΩ
  • for Un = 500 V: 500 kΩ…2 GΩ
  • for Un = 1000 V: 1 MΩ…9,99 GΩ
Display range *) Resolution Accuracy
0,00…9,99 Ω 0,01 Ω ±(3% m.v. + 8 digits)
10,0…19,9 Ω 0,1 Ω ±(3% m.v. + 8 digits)
20,0…99,9 Ω 0,1 Ω ±(3% m.v. + 8 digits)
20,0…99,9 Ω 0,1 Ω ±(3% m.v. + 8 digits)
20,0…99,9 Ω 0,1 Ω ±(4% m.v. + 6 digits)

*) not greater than measuring range for given voltage



Low-voltage measurement of resistance and circuit continuity Measurement of protective conductor continuity with the ±200 mA current, IEC 61557-4: 0,12…400 Ω
Display range Resolution Accuracy
0,00…19,99 Ω 0,01 Ω ±(2% m.v. + 3 digits)
20,0…199,9 Ω 0,1 Ω ±(2% m.v. + 3 digits)
200…400 Ω 1 Ω ±(2% m.v. + 3 digits)
  • voltage on open terminals: 4…9 V
  • output current at R < 2 Ω: min. 200 mA
  • autocalibration of test leads
  • measurements for both current polarities



Illuminance measurement
Display range Resolution Accuracy
0,1…99,9 lx 0,1 lx ±(5% m.v. + 2 digits)
100…999 lx 1 lx ±(5% m.v. + 2 digits)
1,00…9,99 klx 0,01 klx ±(5% m.v. + 2 digits)
10,0…19,9 klx 0,1 klx ±(5% m.v. + 2 digits)
  • measurement in luxes (lx) or feet-candles (fc)



Three-phase recorder of electrical network parameters

The device is designed to work with networks:

  • with nominal frequency 50/60 Hz
  • with nominal voltage:
    • 64/110 V
    • 110/190 V
    • 115/200 V
    • 127/220 V
    • 220/380 V
    • 230/400 V
    • 240/415 V
    • 254/440 V
    • 290/500 V
  • DC network

Supported networks:

  • single-phase
  • two-phase with common N conductor,
  • three-phase star connection N with and without conductor
  • three-phase delta

Parameters of analyzer:

Parameter Measurement range Max. resolution Accuracy
Alternating voltage (TRMS) 0,0…500 V 0,01 % Unom ±0,5% Unom
Alternating current TRMS depending on clamp* 0,01% Inom ±2% m.v. for m.v. ≥ 10% Inom ±2% Inom for m.v. < 10% Inom (error does not account for clamps error)
Frequency 40,00…70,00 Hz 0,01 Hz ±0,05 Hz
Active, reactive, apparent and distortion power depending of configuration (trasformers, clamp) up to for decimal places depending of configuration (trasformers, clamp)
Active, reactive apparent energy depending of configuration (trasformers, clamp) up to for decimal places as power error
cosφ and power factor (PF 0,00…1,00 0,01 ±0,03
Harmonics Voltage as for alternating voltage as for alternating voltage ±5% m.v. for m.v. ≥ 3% Unom ±0,15% Unom for m.v. < 3% Unom
Harmonics Current as for alternating voltage as for alternating voltage ±5% m.v. for m.v. ≥ 10% Inom ±0,5% Inom for m.v. < 10% Inom
THD Voltage 0.0…100.0% (in regards to the rms value) 0,1% ±5%
THD Current 0.0…100.0% (in regards to the rms value) 0,1% ±5%
Voltage asymmetry Voltage and current 0,0…10,0% 0,1% ±0,15% (absolute error)

* Clamp F-1A, F-2A, F-3A: 0..3000 A (10000 Ap-p )
* Clamp C-4A: 0..1000 A (3600 Ap-p )
* Clamp C-5A: 0..1000 A (3600 Ap-p )
* Clamp C-6A: 0..10 A (36 Ap-p )
* Clamp C-7A: 0…100 A (360 Ap-p )



Clamps C-4A WACEGC4AOKR C-5A WACEGC5AOKR C-6A WACEGC6AOKR C-7A WACEGC7AOKR F-1A WACEGF1AOKR F-2A WACEGF2AOKR F-3A WACEGF3AOKR
Rated current 1000 A AC 1000 A AC 1400 A DC 0 A AC 100 A AC 3000 A AC 3000 A AC 3000 A AC
Max. overload current 1200 A AC 1000 A AC 3000 A DC 20 A AC 100 A AC 10 kA AC 10 kA AC 10 kA AC
Minimal measurable current 100 mA 500 mA 10 mA 20 mA 1 A 1 A 1 A
Frequency 30 Hz…10 kHz DC…5 kHz 40 Hz…10 kHz 40 Hz…1 kHz 40 Hz…10 kHz 40 Hz…10 kHz 40 Hz…10 kHz
Imput signal level 1 mV / 1 A 1 mV / 1 A 100 mV / 1 A 500 mV / 1 A 38,8 μV / 1 A 38,8 μV / 1 A 38,8 μV / 1 A
Max. diameter of measured cord 52 mm 39 mm 20 mm 24 mm 360 mm 235 mm 120 mm
Minimal basic accuracy ≤0,5% ≤1,5% ≤1% 0,5% 1% 1% 1%
Battery power supply +
Lead length 2,2 m 2,2 m 2,2 m 3 m 2,2 m 2,2 m 2,2 m
Measurement category IV 300 V IV 300 V IV 300 V III 300 V IV 600 V IV 600 V IV 600 V
