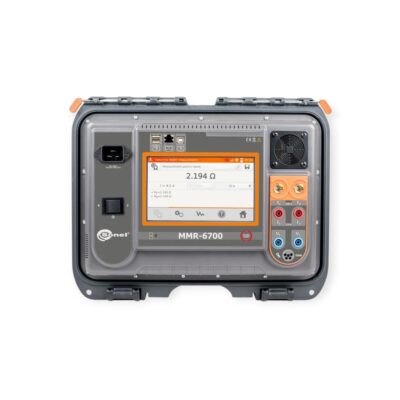

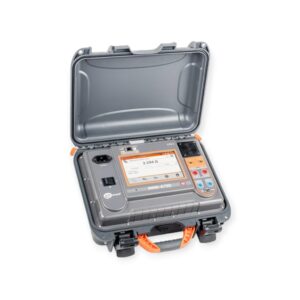

MMR-6700 Micro ohmmeter WMGBMMR6700

Description

The MMR-6700 digital meter is designed for measuring low resistances with a stabilised current of up to 200 A. The use of test clamps enables the safe measurement of breakers (high-, medium- and lowvoltage), isolators and other components earthed on both sides. The MMR-6700 series meters are equipped with a unique module in their class that measures inductive components which have a current of up to 10 A, enabling the winding resistance of motors, transformers and other inductive components to be measured. Another useful function is the temperature measurement and the automatic compensation of results with relation to the measured temperature or temperature set by the user. The system is completed with a recorder function. Special measuring algorithms and additional functions allow an appropriate measuring method to be chosen depending on the measured component and measurement conditions, thus, widening the application areas of the meter. The state-of-the-art user interface, various communication interfaces, wireless communication and communication with the computer, printer, 2D code reader are integrals features which enable full, comfortable and intuitive management of not only measurements and their results but also ID data of measured components.

Key features of the instrument:

  • resistance measurement of:
    • switch and contactor contacts, HV breakers, includingthose earthed on both sides,
    • fuses,
    • screw joints,
    • weld joints,
    • equipotential bondings,
    • contacts,
    • cable connections,
    • heating element connections,
    • rail joints,
    • conductors and cables,
    • windings (motors, transformers, etc.)
    • low-resistance coils,
    • soldered joints,
    • grounding conductors,
    • home and industrial systems,
  • voltage drop indication,
  • temperature measurement,
  • clamps for current leakage measurement,
  • working with a printer and 2D code reader,
  • l arge touch screen offering a clear display,
  • battery charge monitoring,
  • ergonomic operation,
  • protection against overheating.

Technical Specifications

Measurements of resistive components

Range[Ω] Resolution[Ω] Test current Basic measurement
uncertainty
0,0…999,9 μ 0,1 μ 100 A<I<=200 A (200 mV)





















±(0,25% w.m. + 2 digits)

0,0…999,9 μ 0,1 μ 50 A<I<=100 A (200 mV)
1,0000…1,9999 m 0,0001 m 50 A<I<=100 A (200 mV)
0,0…999,9 μ 0,1 μ 20 A<I<=50 A (200 mV)
1,0000…3,9999 m 0,0001 m 20 A<I<=50 A (200 mV)
0,0…999,9 μ 0,1 μ 10 A<I<=20 A (160mV)
1,0000…7,9999 m 0,0001 m 10 A<I<=20 A (160mV)
0…999,9 μ 0,1 μ 10 A (20 mV)
1,0000…1,9999 m 0,0001 m 10 A (20 mV)
2,000…19,999 m 0,001 m 10 A (200 mV)
20,00..199,99 m 0,01 m 10 A / 1 A (2 V / 200 mV)
200,0…999,9 m 0,1 m 1 A / 0,1 A (2 V / 200 mV)
1,0000…1,9999 0,0001 1 A / 0,1 A (2 V / 200 mV)
2,000…19,999 0,001 0,1 A (2 V)
20,00…199,99 0,01 10 mA (2 V)
200,0…1999,9 0,1 1 mA (2 V)

Measurements of inductive components

Range[Ω] Resolution [Ω] Test current / Voltage Basic measurement
uncertainty
0 μ…999,9 μ 0,1 μ 10 A









±(0,25% w.m. + 2 digits)

1,0000 m…1,9999 m 0,0001 m 10 A
2,000 m…19,999 m 0,001 m 10 A
20,00 m..199,99 m 0,01 m 10 A / 1 A
200,0 m…999,9 m 0,1 m 1 A / 0,1 A
1,0000…1,9999 0,0001 1 A / 0,1 A
2,000…19,999 0,001 0,1 A
20,00…199,99 0,01 10 mA
200,0…1999,9 0,1 1 mA

for measurements on inductive objects output voltage ≤ 5 V

Technical parameters:

  • Housing protection level acc. to EN 60529:
  • closed cover IP67
  • open cover IP40
  • power supply for I<=10A measurements Li-Ion battery 7.2 V 8.8 Ah
    mains supply 100 V..265 V / 50 ..60 Hz, 16 A
  • battery charging time approx. 3.5 h
  • maximum resistance for current of 10A 200 mΩ
  • current pre-setting accuracy ±10%
  • measurement time:
  • resistance mode, with bidirectional current flow 7-15 s
  • inductive mode (depends on object resistance and inductance) 10 s or more
  • dimensions 401 mm x 307 mm x 175 mm
  • meter weight approx. 8.7 kg
  • operating temperature -10oC…+50oC
  • display 800×480 pixels
  • communication USB, LAN, WiFi
